Single-Sided Frame Assembly
A single-sided structure keeps frame positioning and machine operation on one working face.
This route suits production layouts where the operator approaches the frame from one side.

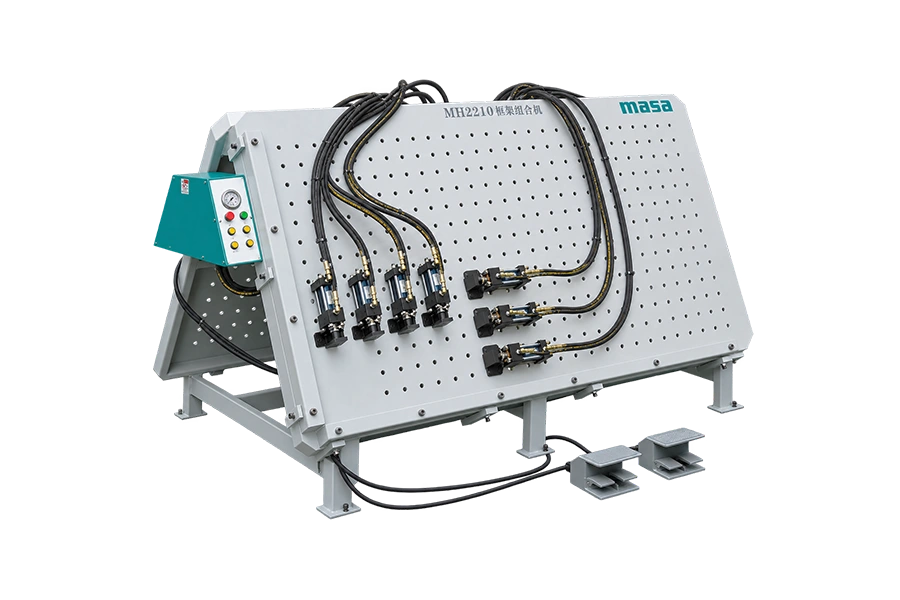

Frame Assembly Machines for Doors, Windows, and Cabinets
Bring prepared door, window, and cabinet-frame components into a dedicated clamping and assembly station.
MASA offers single- and double-sided structures for wooden doors, metal door and window frames, and cabinet frames.
Frame Assembly Routes for Different Workspaces

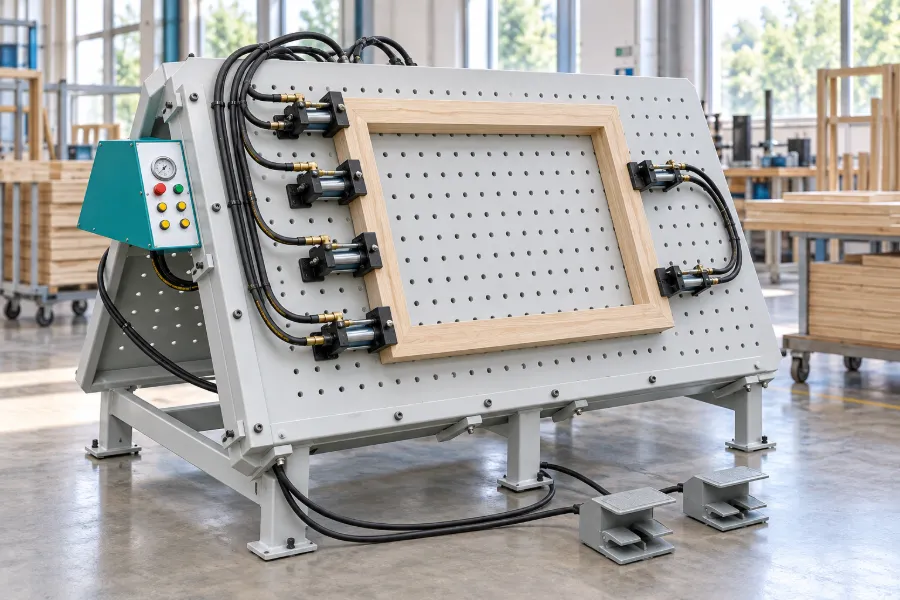

Double-Sided Frame Assembly
A double-sided structure places repositionable heavy cylinders around the workpiece for clamping from several directions.
The cylinder layout can be arranged around the frame shape and required pressure points.
Explore Frame Assembly Machines
CNC contour and straight-edge machines cover curved profiles, chamfers, milled edges, and linear sanding processes.
Single-side Wood Clamping Machine
A single side wood clamping machine with K8 heavy-duty oil cylinders
Double-Sided Wood Clamping Machine
High-efficiency primer and sealer sanding for flat panels and coated surfaces.
Component Brands Across MASA Equipment
Position and Clamp Frames for Assembly

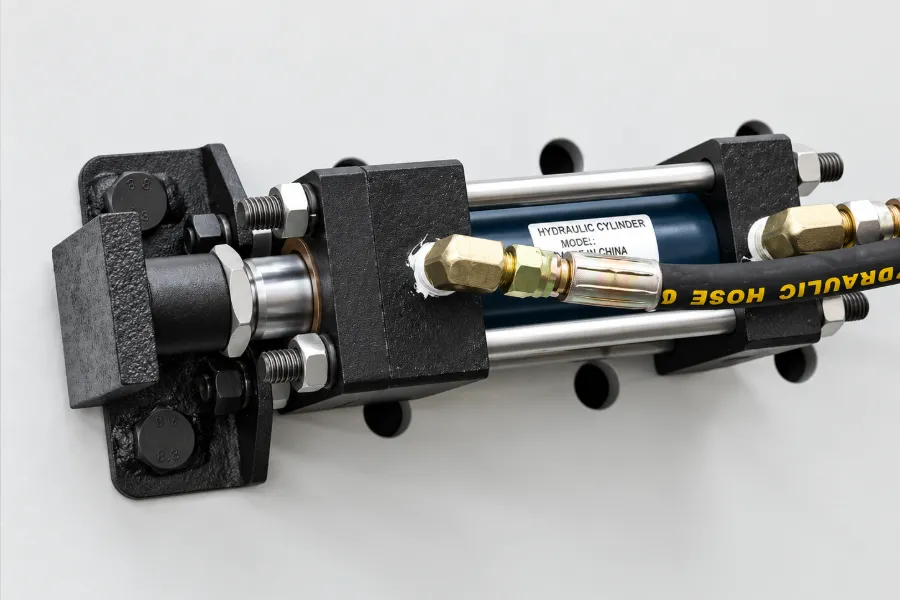

Repositionable Heavy Cylinders
On double-sided equipment, HOB heavy-duty cylinders can be repositioned around the workpiece to match the required clamping points.

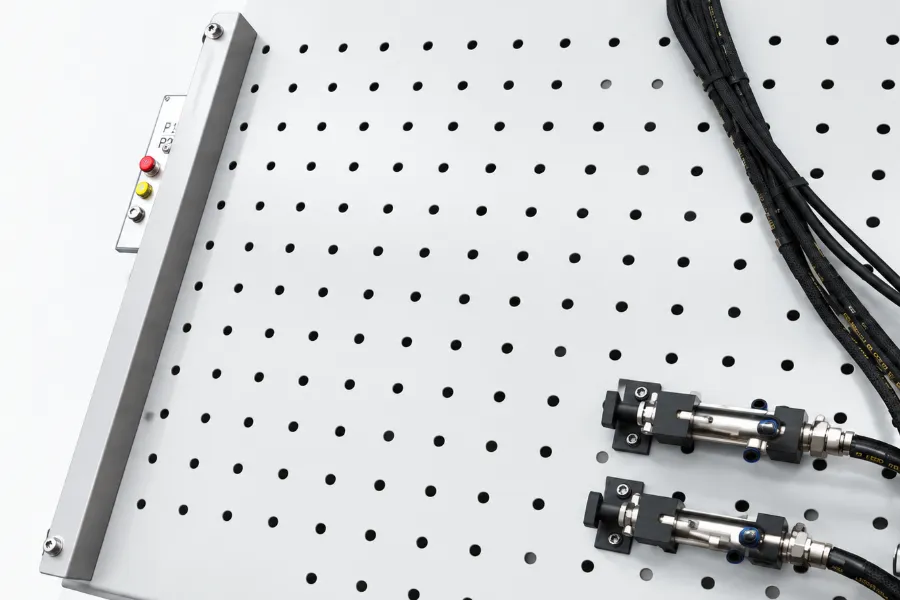

Reference-Square Alignment
Thick reference squares provide a fixed positioning surface while frame components are arranged and clamped.
They help the operator keep the frame aligned through the assembly setup.

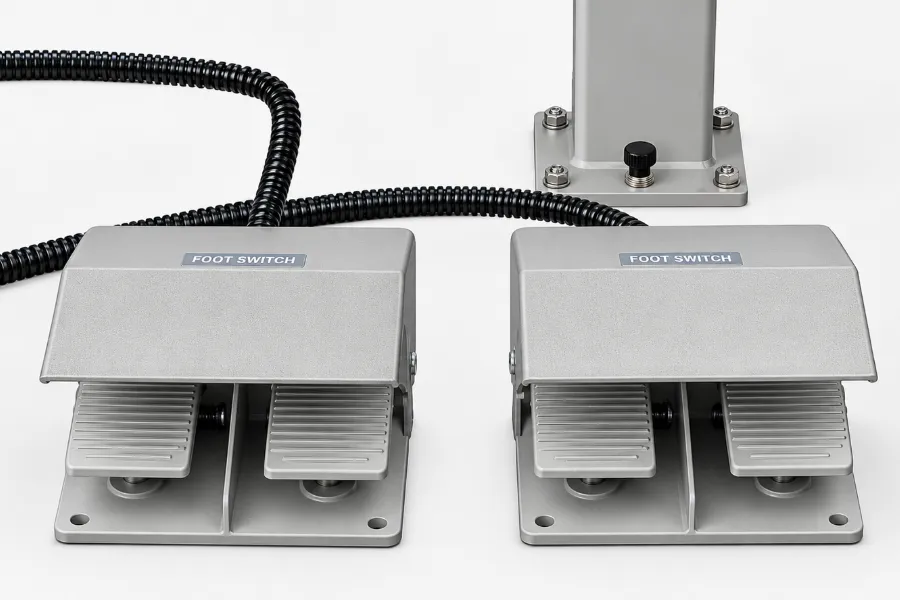

Simple Controls and Foot Operation
The double-sided assembly machine uses a straightforward control panel and foot switch for machine operation.
Frame Assembly Within the Production Flow

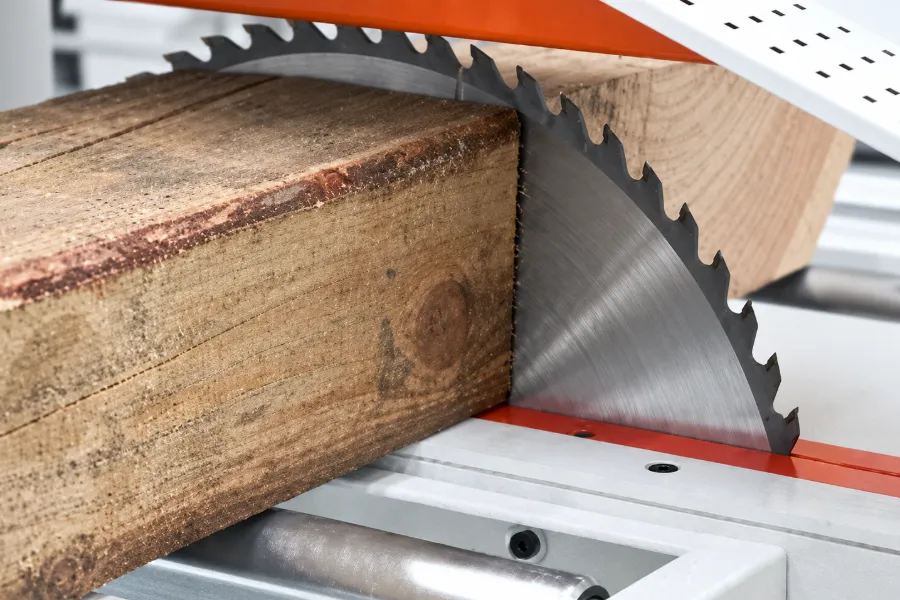

Cutting Before Frame Assembly
Frame components are cut to the planned length and end angle before they are positioned and clamped. The cut list connects the finished frame dimensions with the parts entering assembly.
Profile and Edge Preparation
Edge sanding and frame assembly remain separate operations. Their sequence follows the frame structure, joint design, coating condition, and finishing process.
Wood Door and Frame Production
A wood door or frame production flow can include separate cutting, edge preparation, and assembly stations. Equipment placement follows material movement, operator access, and the order required by the product.
Manufacturing and Support Beyond the Machine
Work with MASA for in-house manufacturing, door-and-window line coordination, and long-term distributor support.
-
In-house Manufacturing & Engineering
MASA operates a 3,000+ m² factory in Foshan. In-house machining and sheet-metal production support frame assembly machines and the broader industrial equipment range.
-
Line Coordination Across Stations
Frame assembly can be planned with cutting and edge-finishing equipment in the same plant layout. MASA reviews the requirements, station sequence, and how assembly fits with upstream and downstream processes.
-
Distributor & Partner Support
Regional distributors can discuss market coverage, product materials, installation and training support, remote technical assistance, and spare-parts supply through the MASA Partner Program.
Frame Assembly Machine FAQs
Frame size, material, clamping direction, operator access, and available floor space determine the suitable layout.
A frame drawing helps MASA identify whether a single- or double-sided structure fits the production setup.
The category covers frame assembly for wooden doors, metal door and window frames, solid-wood doors, and cabinet frames.
Yes, on double-sided equipment. The HOB heavy-duty cylinders can be repositioned around the workpiece to match the required clamping points.
Send the frame drawing or clear photos, material, outside dimensions, clamping sides, operator access, current workflow, and output target.
Joint details and the available installation area also help define the machine arrangement.
A Frame Assembly Machine for Your Production Requirements
Share the frame drawing, material, dimensions, clamping sides, operator access, and output target.
MASA uses this information to match the operating structure, cylinder positions, reference-square setup, and connection to the surrounding production steps.
- Frame geometry and size review
- Single- or double-sided layout
- Clamping and alignment planning
- Upstream process coordination
