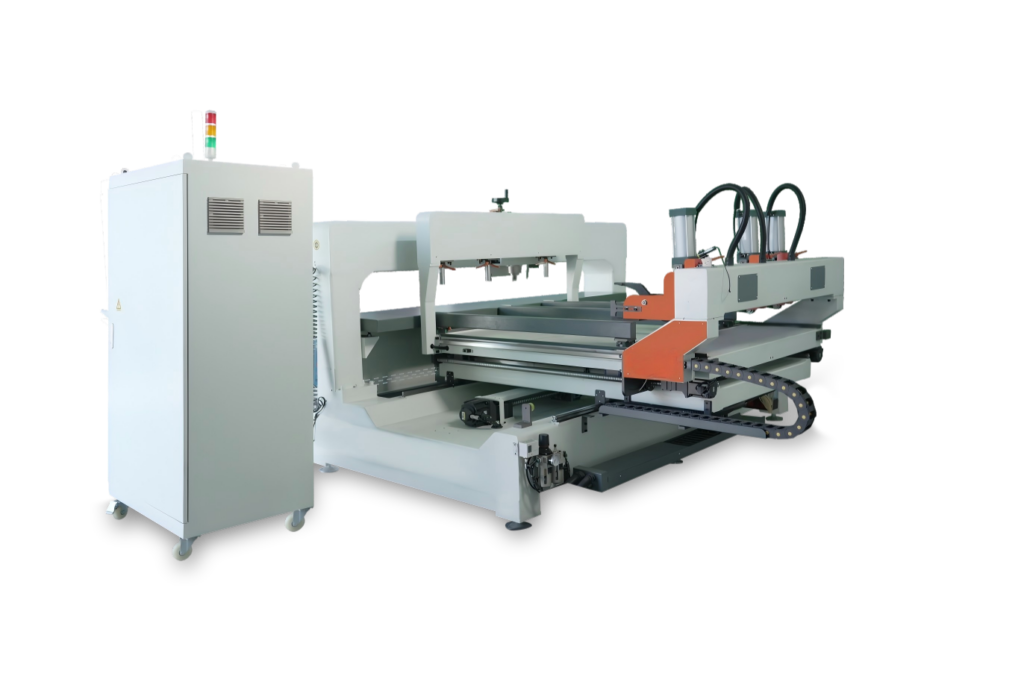

A solid wood cutting machine integrating milling, drilling and cutting. Supports DXF format and cutting at any angle. Equipped with Qixin Robot control system and German 30mm precision linear guides, suitable for solid wood furniture, chairs, tables, carved components and more.
| Category | Parameters |
|---|---|
| Model | MXK-1300 |
| Max. Processing Size | 1300 × 1300 × 140 mm |
| Processing Speed | 0–10 m/min |
| Rapid Traverse Speed | 0–20 m/min |
| Spindle Speed | 0–18000 r/min |
| Spindle Motor | 11 kW × 2 |
| Servo Motor | 1.5 + 1.5 + 0.75 + 0.75 kW |
| Voltage | 380V |
| Air Pressure | 0.6–0.8 MPa |
| Tool Diameter | 4–10 mm |
| Overall Dimensions | 3000 × 2300 × 1600 mm |
| Net Weight | 2800 kg |
| Control System | Qixin Robot Control System |

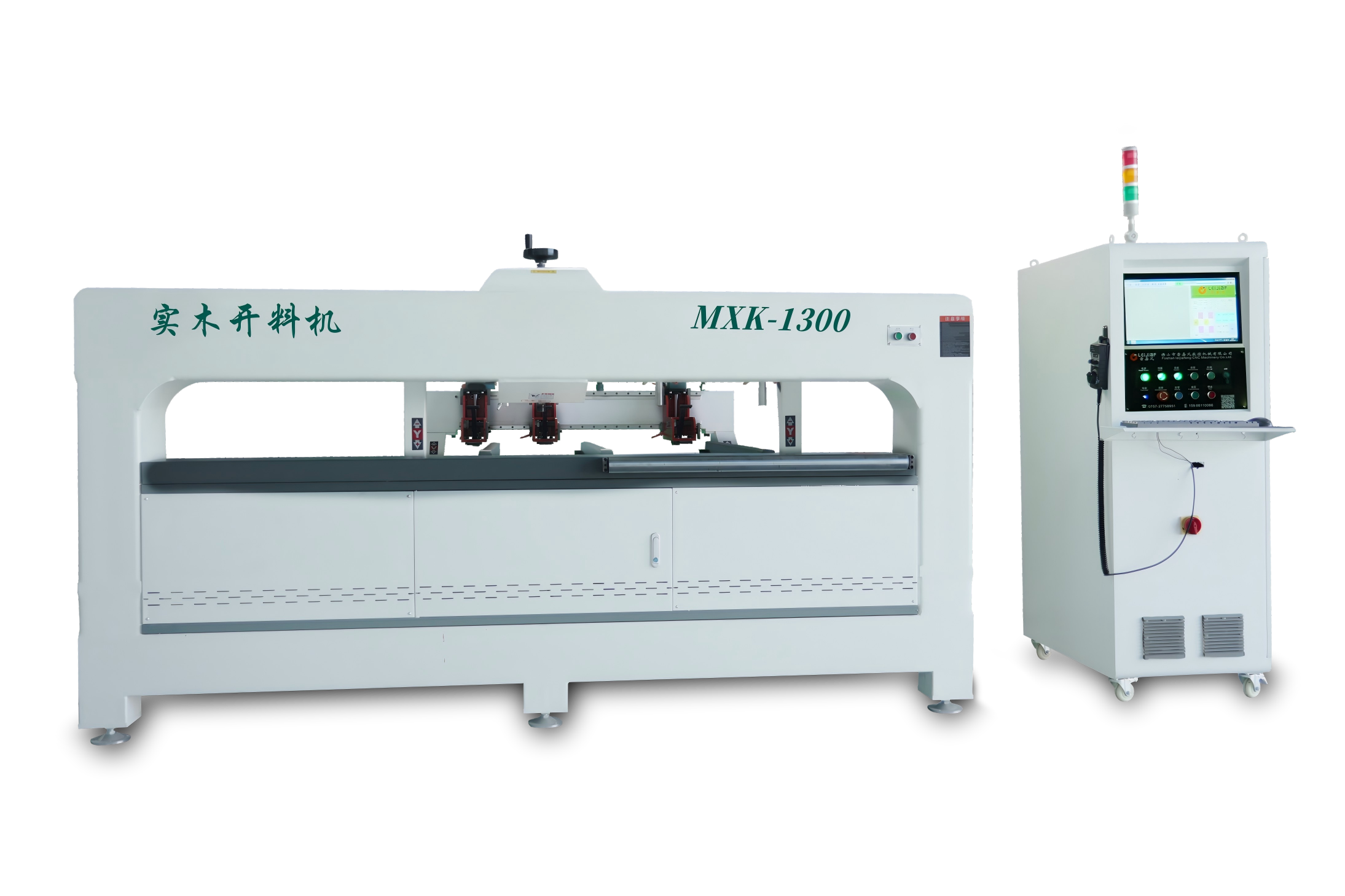

The MXK-1300 integrates milling, drilling and cutting into one machine, reducing errors and efficiency loss caused by traditional multi-process transfer. It supports DXF files and can directly import machining paths for cutting at any angle, making operation simple and convenient. Suitable for solid wood furniture, chairs, tables, carved components and more.

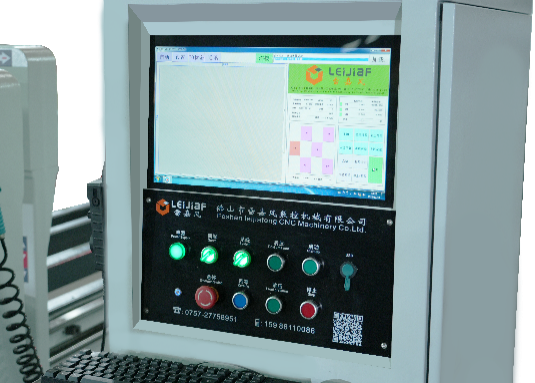

The machine adopts the Qixin Robot independently developed control system, combined with Delta servo motors, TBI precision ball screws and German 30mm precision linear guides, ensuring machining accuracy and stable operation. Dual-spindle motors (11kW × 2) provide sufficient processing power.

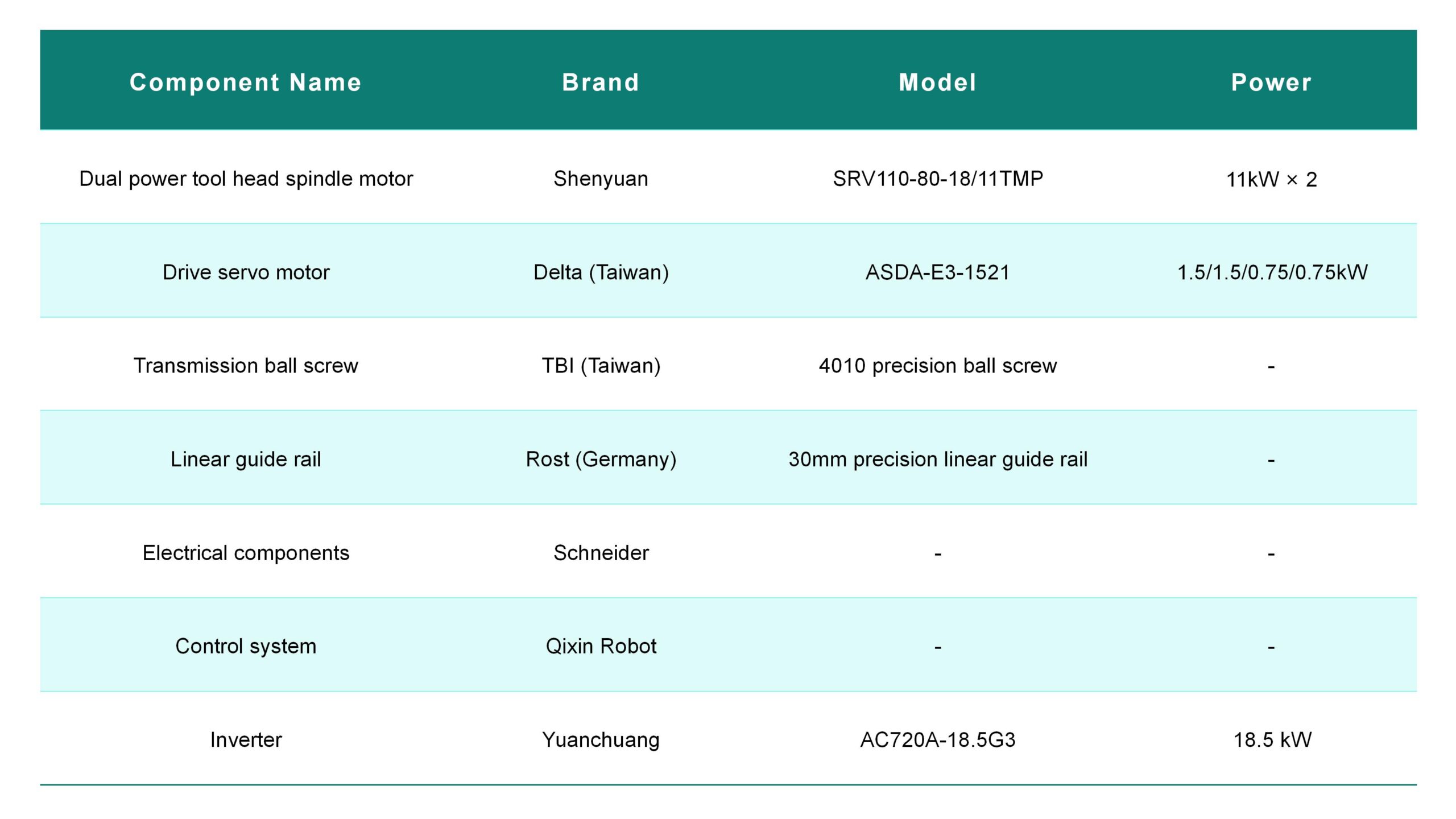

Key components with brands, models and power — all from internationally renowned brands for reliable performance.
