Profile & Surface Sanders

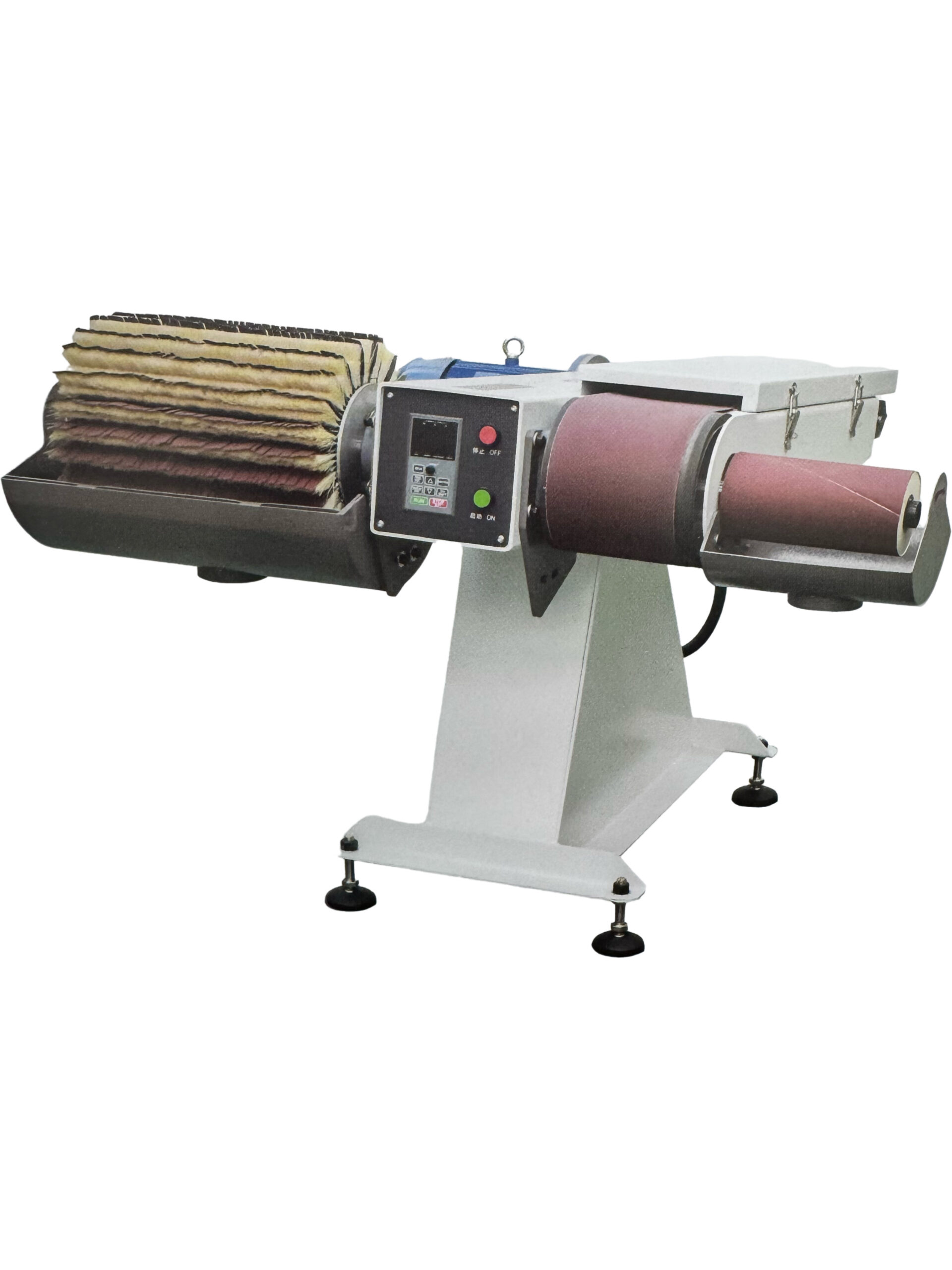

Mini Multi-Function Wood Sander-Triple Sander
Multi-functional sanding machine with dual sand rollers and abrasive belts combo
Core Highlights
- Equipped with abrasive roller and belt
- Fit for irregular surface and round corner
- Adjustable Operating Platform Height
Technical Specifications
| Category | Parameters |
|---|---|
| Process Type | Different type of wood sanding |
| Sand Roller Speed | 0–1350 r/min |
| Roller Diameter | Φ180 mm |
| Sand Roller Diameter | Φ300 mm |
| Maximum Processing Thickness | 300 mm |
| Operating Platform Height | 810–608 mm（Adjustable） |
| Equipment Dimensions | 1250 × 1050 × 900 mm |
| Equipment Weight | 180kg |
| Motor Power | 2.2 kW |
| Model | MM-J2 |
Engineering Highlights
The sand roller speed is adjustable from 0 to 1350 r/min,
The sand roller height is adjustable up and down with a range of up to 400 mm,suitable for workpieces of different heights. The operating platform height is also adjustable (810–608 mm), allowing operators to flexibly adjust according to wood.
Abrasive brush fit for irregular surface and round corner
This design enables the machine to adapt to different wood shape
