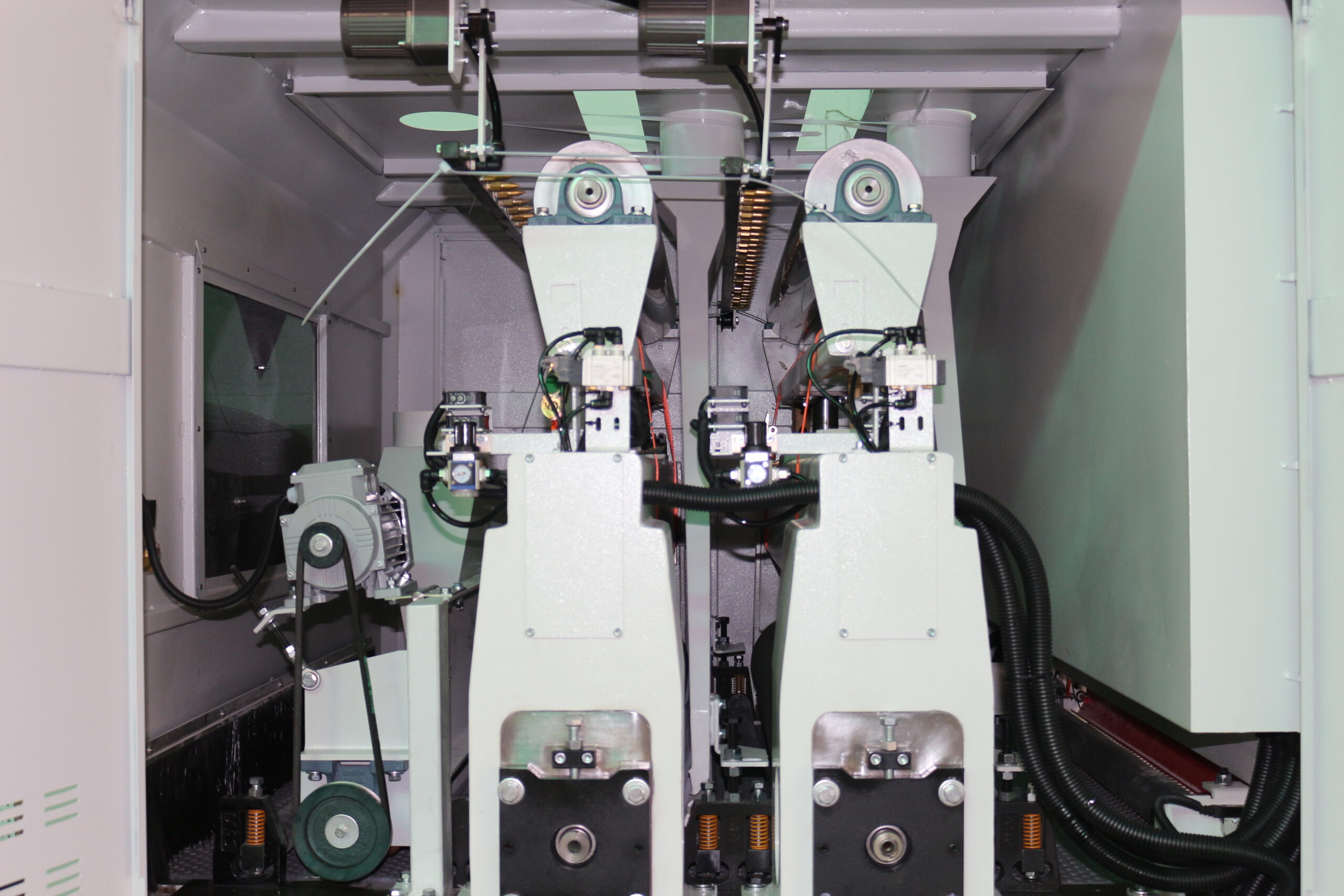

Primer sandere equipped with a high-precision magnetic grating positioning system and ball screw system
| Category | Parameters |
|---|---|
| Sanding Process | Primer Sanding |
| Max. Working Width | 1300 mm |
| Min. Working Length | 300mm |
| Working Thickness | 3-100 mm |
| Abrasive Belt Size | 1350 × 2100 mm |
| Feeding Speed (VFD) | 5-30 m/min |
| Working Air Pressure | 0.6 MPa |
| Volume of Dust Collection Device | 11160 m³/h |
| Air Consumption | 12 m³/h |
| Total Motor Power | 26.15 kW |
| Overall Dimensions (L×W×H) | 2050 × 2130 × 2310 mm |
| Machine Weight | 3500 kg |
Floating primer sander is standard equipment for automatic coating production lines, specifically designed for the primer sanding process.
It can seamlessly integrate with UV/PU coating production lines

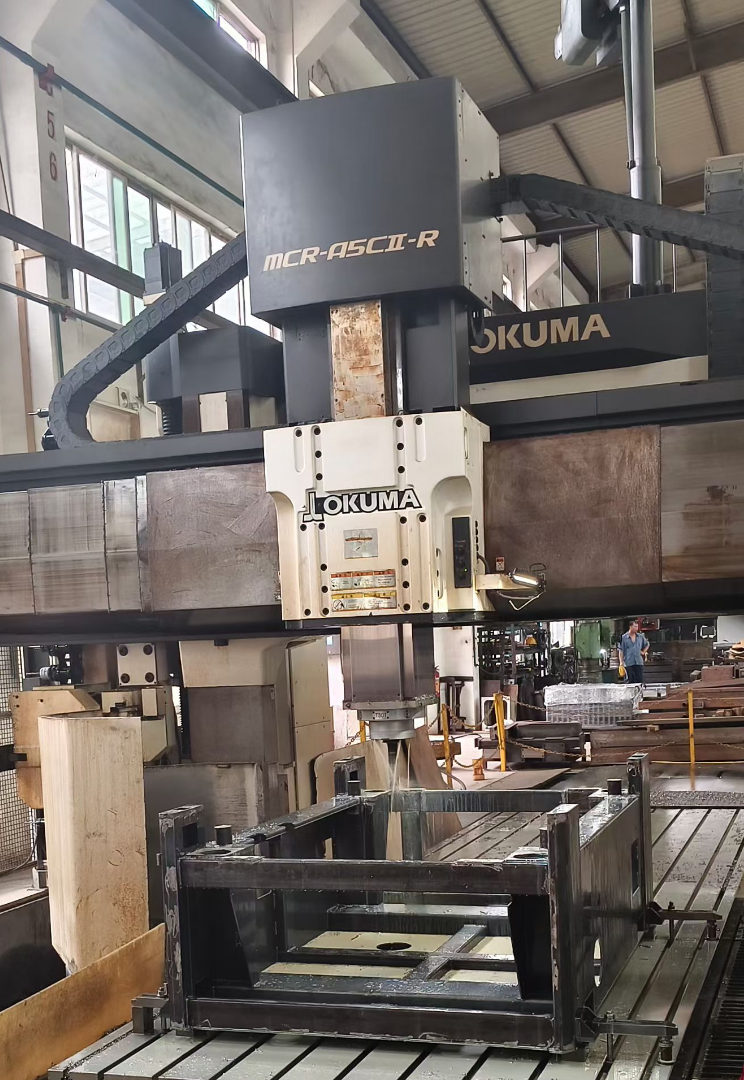

Whole machine body annealing treatment, Eliminate internal stress in steel,resists deformation and ensure higher precision, life span over 10 years.

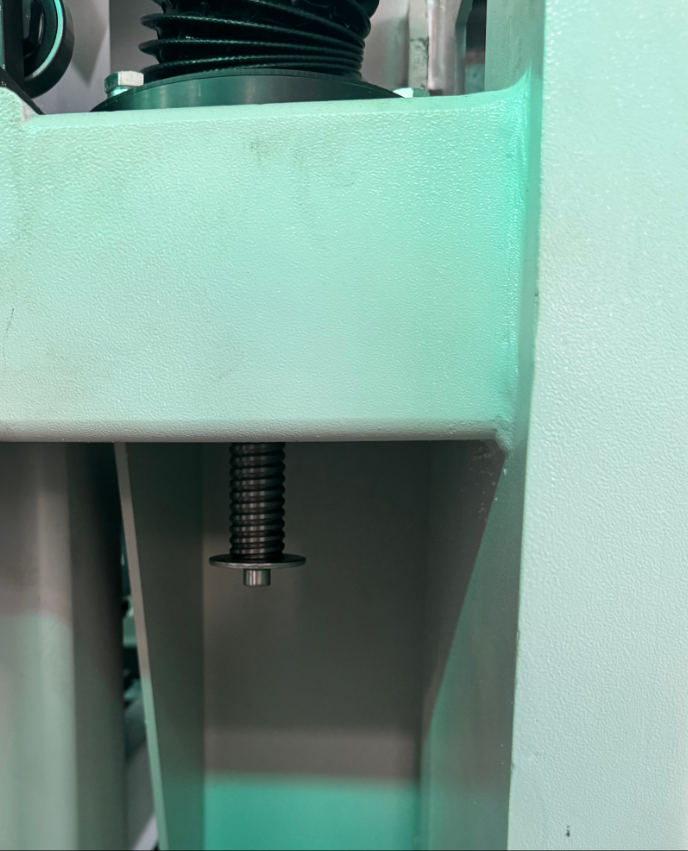

Taiwan-made ball screw lifting mechanism: accuracy 0.008mm, positioning accuracy 0.03mm reciprocating accuracy 0.005mm.
These designs ensure accurate sanding amount control and stable results during primer sanding.

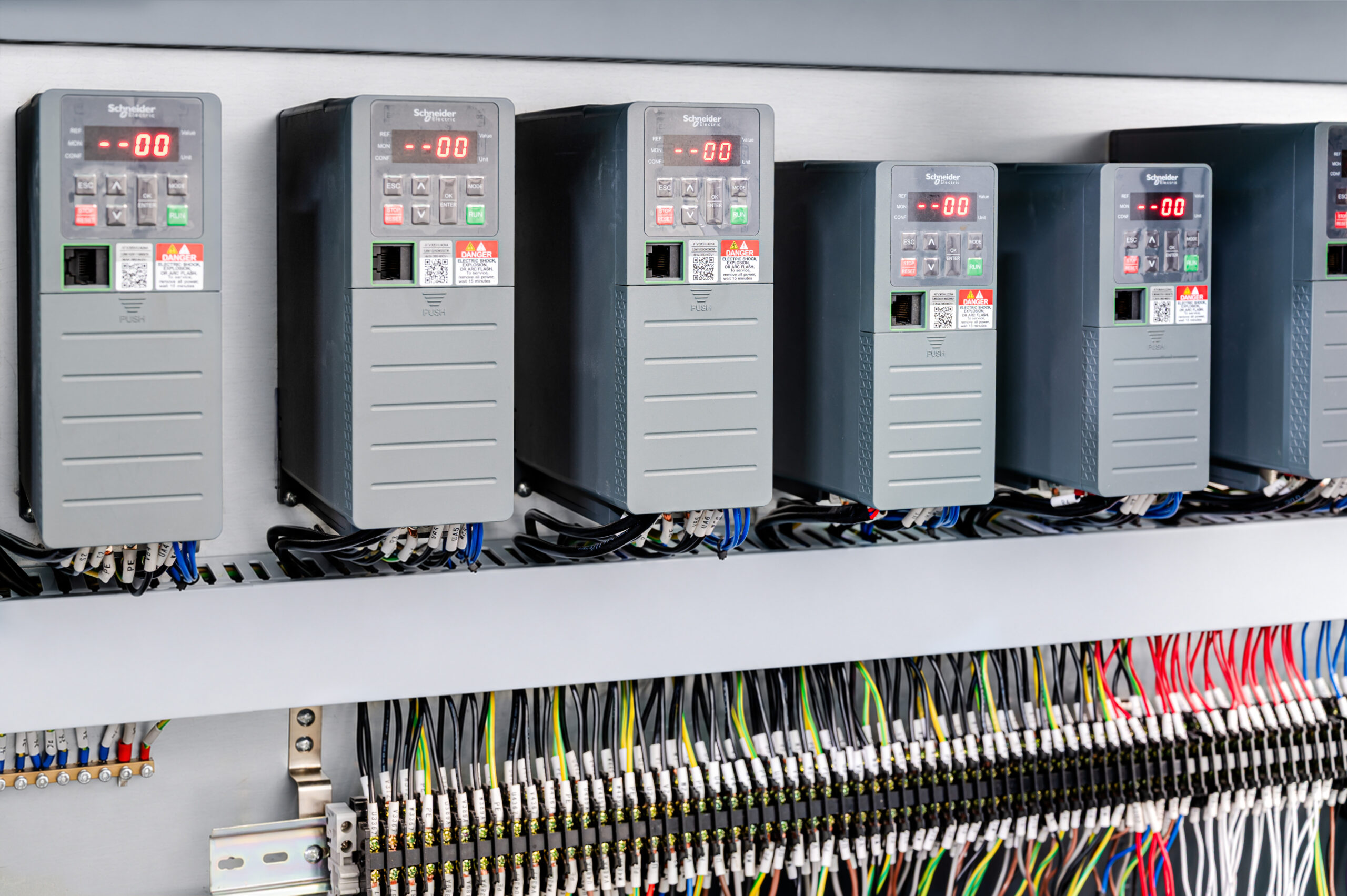

Whole machine Schneider Electric Contactors and breaker (France)
Janpan OMRON brand relay
Taiwan mingwei switching power supply
Our engineers design end-to-end sanding lines tailored to your material, output, and available space.
