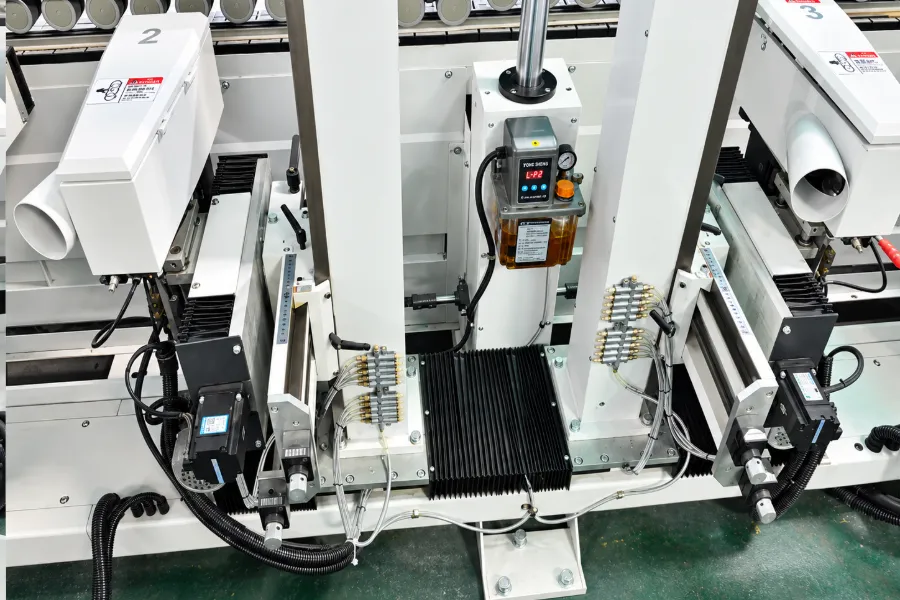

Full Servo Profile Tracking for Precise Sanding
Full servo control system with a high-precision profiling tracking system that accurately collects workpiece edge trajectories for sanding straight, curved and circular edges.
Profile & Surface Sanders
CNC Profiling Edge Sander for Baby Furniture
CNC profiling edge sander with full servo control system, accurately tracing straight, curved and circular edges for edge sanding and chamfering in one time
Core Highlights
- Full Servo Control System
- Profile Tracking for Straight & Curved Edges
- Customizable Sanding Heads for Different Workpieces

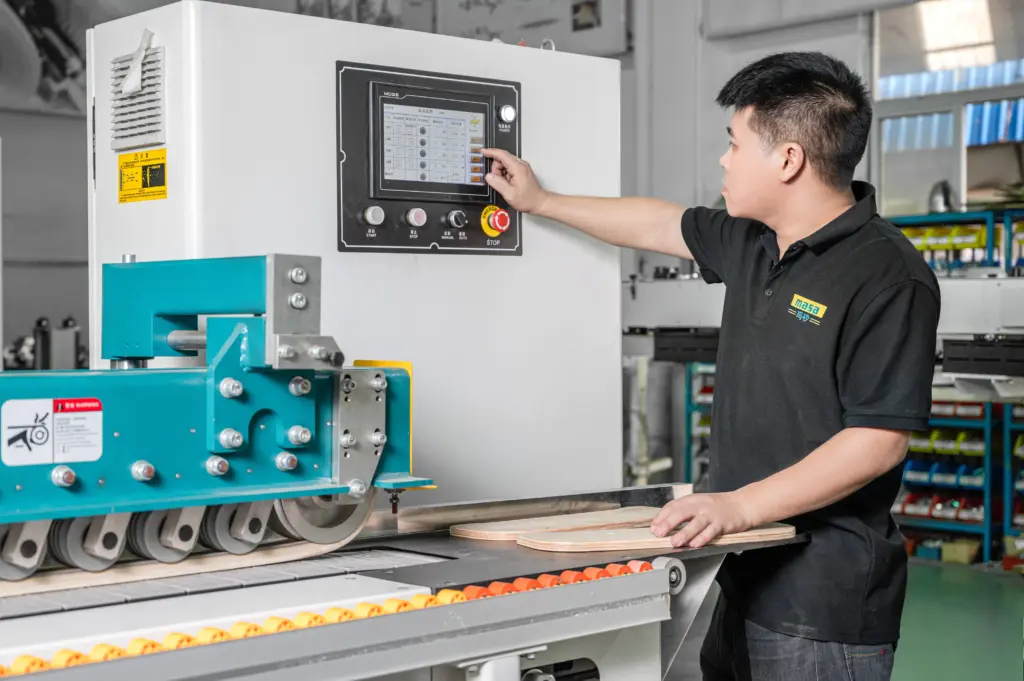

- Touch Screen Intelligent Control
Technical Specifications
| Category | Parameters |
|---|---|
| Model | MB-X151W3 |
| Sanding Process | Edge sanding and chamfering |
| Minimum Processing Width | 50 mm |
| Minimum Feeding Length | 150 mm |
| Feeding Thickness | 5-80 mm |
| Feeding Speed (VFD) | 0-25 m/min |
| Total Motor Power | 15.12 kW |
| Overall Dimensions (L×W×H) | 5900×1300×1500 mm |
Engineering Highlights
Customizable Sanding Heads for Various Edge Processes
Sanding heads can be customized according to specific customer workpiece requirements to ensure optimal sanding results. Various sanding heads can be adjusted according to different process requirements, suitable for edge sanding and chamfering of linear edges and circular arcs at certain angles.
Stable Steel Frame Conveying and Safe Control
Press beam conveying can be selected as track type or wheel type, ensuring stable and safe transmission. Servo motor with worm gearbox feeding provides precise data control.
Accurate control of workpiece putting-out ensures a safe and reliable process
